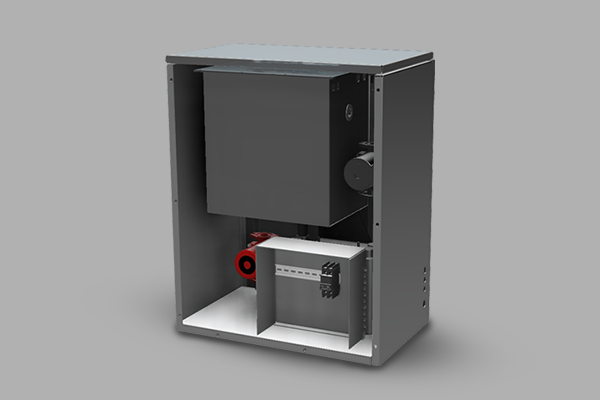

Design & Size
▫️Compact, fully enclosed galvanized steel enclosure
▫️Tank dimensions: 16.5" length x 11.75" width x 17.75" height
▫️Enclosure size: 28" length x 17" width x 17.75" height
Capacity & Power
▫️Prewired for 2 Antminer S19 miners with C19 power supply cables
▫️Maximum power draw: 50 amps at 240 volts (single phase)
▫️Power range: 8 kW to 12 kW
Cooling System
▫️Twin high-efficiency Grundfos pumps (internal circulation and system side)
▫️Copper core plate heat exchanger for clean non-corrosive fluids
▫️Max outlet temperature: 140°F (60°C)
▫️Recommended inlet temperature: 90°F (32°C) or less
▫️Estimated heat output: approximately 24,000 BTU
Electrical & Safety
▫️20A two-pole breaker switches (x2 for miners)
▫️15A single-pole breaker switches (x2 for pumps and peripherals)
▫️Power distribution blocks: 2 x 500A / 1000V, 1-pole
▫️Includes 240V plug
Connections & Components
▫️1-inch threaded plumbing connections
▫️Includes stainless steel laser-welded tank, network plugs, heat exchanger, pumps, power distribution cabinet with wiring, miner cables, stainless steel cover, and CTcool fluid
Installation
▫️Requires external electrical and plumbing connections
Design & Size
▫️Compact, fully enclosed galvanized steel enclosure
▫️Tank dimensions: 16.5" length x 11.75" width x 17.75" height
▫️Enclosure size: 28" length x 17" width x 17.75" height
Capacity & Power
▫️Prewired for 2 Antminer S19 miners with C19 power supply cables
▫️Maximum power draw: 50 amps at 240 volts (single phase)
▫️Power range: 8 kW to 12 kW
Cooling System
▫️Twin high-efficiency Grundfos pumps (internal circulation and system side)
▫️Copper core plate heat exchanger for clean non-corrosive fluids
▫️Max outlet temperature: 140°F (60°C)
▫️Recommended inlet temperature: 90°F (32°C) or less
▫️Estimated heat output: approximately 24,000 BTU
Electrical & Safety
▫️20A two-pole breaker switches (x2 for miners)
▫️15A single-pole breaker switches (x2 for pumps and peripherals)
▫️Power distribution blocks: 2 x 500A / 1000V, 1-pole
▫️Includes 240V plug
Connections & Components
▫️1-inch threaded plumbing connections
▫️Includes stainless steel laser-welded tank, network plugs, heat exchanger, pumps, power distribution cabinet with wiring, miner cables, stainless steel cover, and CTcool fluid
Installation
▫️Requires external electrical and plumbing connections
.png)
Hybrid data center with 200 kW natural gas generator, air cooling, and hydraulic lift system. Fast deploy, relocates easily, and delivers efficient, reliable power for small to mid-scale Bitcoin mining operations.
.png)
Ensures optimal performance and hardware longevity with a durable build, advanced airflow, and customizable features. Maximizes operational efficiency in demanding mining environments. mining environments.
.png)
High-density vault with 14 tanks, each holding up to 18 miners. Utilizes CTcool fluid for efficient heat removal, supports overclocking firmware, and includes all key components for reliable and quiet operation.
High-density rack container with 250 kW capacity, 220U of server space, smart airflow design, and support for S21 and M30 miners. Stackable, extendable, and designed to perform in a compact footprint.
