Design & Size
▫️Modular and scalable system
▫️Dimensions: 47 inches (length) x 30 inches (width) x 25 inches (height)
▫️Approximate empty weight: 150 lbs
▫️Approximate full weight (with fluid): 400 lbs
Capacity & Compatibility
▫️Prewired to support up to 4 Antminer S19 miners
▫️120 amp maximum power draw at 240 volts
▫️Power range: 16 kW to 24 kW
Cooling System

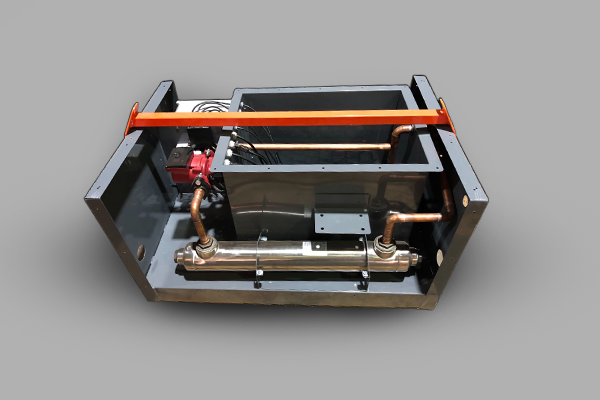

▫️Single internal circulation pump
▫️Shell and tube heat exchanger optimized for low-temperature raw water from pools, ponds, or streams
▫️Maximum outlet temperature: 105°F (not recommended for Antminer S19)
▫️Recommended inlet temperature: 75°F or less
▫️Maximum continuous heat output: up to 81,000 BTU
Connections & Components
▫️2-inch threaded plumbing connections
▫️Includes steel powder-coated housing tank, integrated network switch, heat exchanger, pump, power distribution unit (PDU), miner cables, stainless steel cover, and proprietary CTcool immersion fluid
Installation Requirements
▫️Requires external electrical and plumbing connections
Design & Size
▫️Modular and scalable system
▫️Dimensions: 47 inches (length) x 30 inches (width) x 25 inches (height)
▫️Approximate empty weight: 150 lbs
▫️Approximate full weight (with fluid): 400 lbs
Capacity & Compatibility
▫️Prewired to support up to 4 Antminer S19 miners
▫️120 amp maximum power draw at 240 volts
▫️Power range: 16 kW to 24 kW
Cooling System
▫️Single internal circulation pump
▫️Shell and tube heat exchanger optimized for low-temperature raw water from pools, ponds, or streams
▫️Maximum outlet temperature: 105°F (not recommended for Antminer S19)
▫️Recommended inlet temperature: 75°F or less
▫️Maximum continuous heat output: up to 81,000 BTU
Connections & Components
▫️2-inch threaded plumbing connections
▫️Includes steel powder-coated housing tank, integrated network switch, heat exchanger, pump, power distribution unit (PDU), miner cables, stainless steel cover, and proprietary CTcool immersion fluid
Installation Requirements
▫️Requires external electrical and plumbing connections
.png)
Hybrid data center with 200 kW natural gas generator, air cooling, and hydraulic lift system. Fast deploy, relocates easily, and delivers efficient, reliable power for small to mid-scale Bitcoin mining operations.
.png)

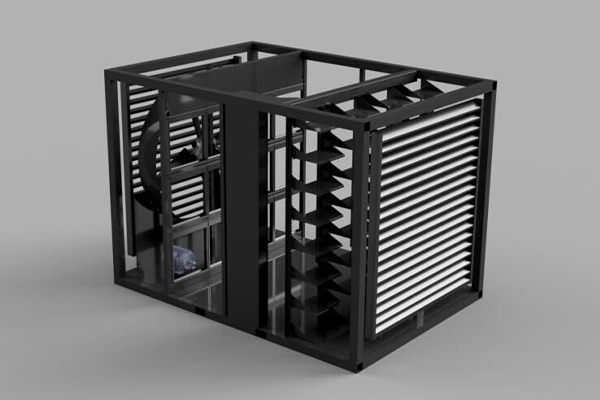

Ensures optimal performance and hardware longevity with a durable build, advanced airflow, and customizable features. Maximizes operational efficiency in demanding mining environments. mining environments.
.png)
High-density vault with 14 tanks, each holding up to 18 miners. Utilizes CTcool fluid for efficient heat removal, supports overclocking firmware, and includes all key components for reliable and quiet operation.
High-density rack container with 250 kW capacity, 220U of server space, smart airflow design, and support for S21 and M30 miners. Stackable, extendable, and designed to perform in a compact footprint.
